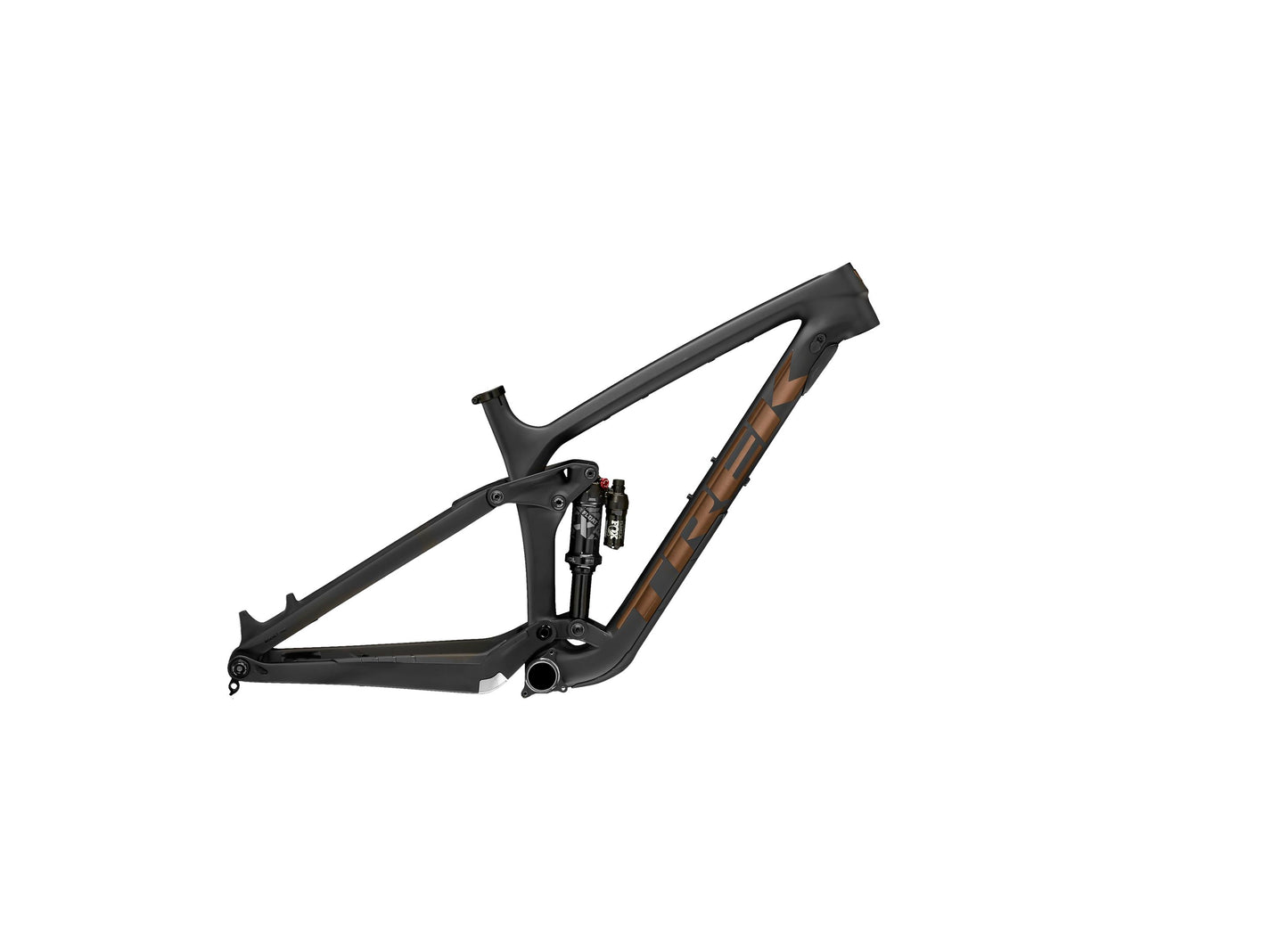

Remedy 27.5 C F/S L Matte Trek Black

Remedy C is a tough full carbon all-mountain frame that's burly enough for the roughest lines, and light enough to make that next climb seem a little shorter. This stout trail bike frame has 150mm of travel and a FOX DPX2 shock that keeps up on long, bone-rattling descents without giving up pedaling support.

• 'Wait for me,' said no Remedy rider ever. This bike has a lot of travel, but it's also extremely quick on the flats and climbs
• You’ll fade before the FOX Performance Elite Float X shock does — it's built to help you squeeze the most out of long, gnarly descents
• Mino Link lets you make small adjustments to your geometry quickly and easily, even mid-ride
• Wider is more stable: Remedy has clearance for up to 27.5x2.8˝ tires
• Control Freak cable routing lets you run any set-up, like a right-front brake, internally-routed dropper, or electronic shifting

Active Braking Pivot

Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

Straight Shot w/Knock Block

Trek's Straight Shot frame design optimizes the stiffness-to-weight ratio for a more responsive ride. You'll be able to push harder and stay more planted on your line when the going gets rough.

Will my bike have a curved top tube?

Smaller frames (S) have a top tube that dips down as it approaches the seat tube. This design makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily. Larger frames (M and up) have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height.

OCLV Mountain Carbon

Trek's mountain-specific carbon fiber is tougher carbon, with unique materials and layup procedures, Trek's advanced engineering, and a higher standard of testing.

Frame	OCLV Mountain Carbon main frame & stays, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 150mm travel
Shock	Fox Performance Elite Float X, 2-position damper, open-mode adjustment, 230mm x 57.5mm
Skewer Rear	Bontrager Switch thru axle, removable lever
Stem	Bontrager Line Pro, 35mm, Blendr compatible, 0 degree, 45mm length
Headset	Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom

Geometry Chart

B B Drop	9.4
B B Height	35.6
Chainstay Length	43.3
Eff Seat Tube Angle	74.7°
Eff Top Tube	62.4
Frame Reach	46.1
Frame Size Letter	L
Frame Size Number	19.5"
Frame Stack	59.7
Head Angle	66.1°
Head Tube Length	11
Offset	4.6
Position	High
Seat Tube	47
Seat Tube Angle	68.5°
Standover	77
Trail	11.2
Wheelbase	120.5
Wheel Size	27.5"
