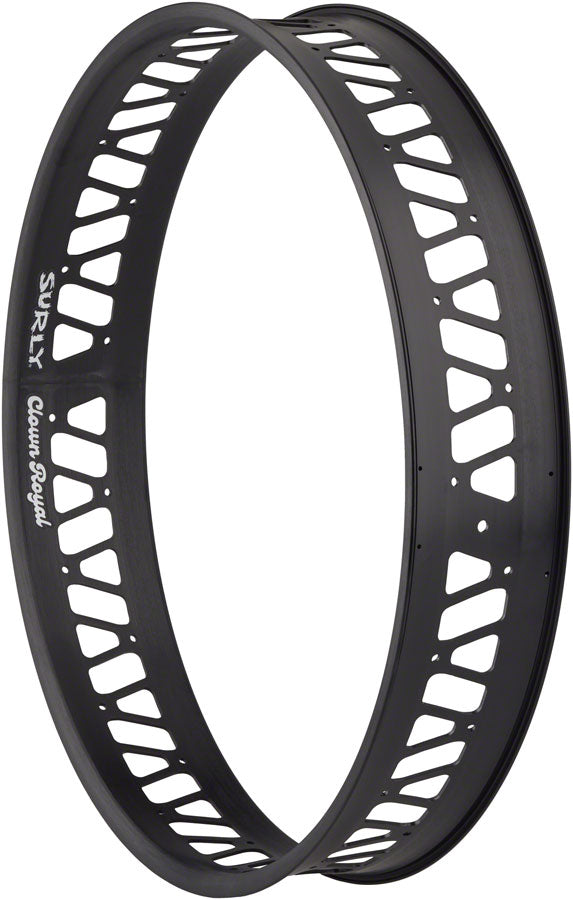

Surly Clown Royal Rim - 24" Disc Black 32H 100mm Symmetrical

The Surly Clown Royal is a 100mm-wide fat bike rim designed exclusively for the 6.2" Molenda tire. Its 24-inch diameter maxes out tire volume for Moonlander’s frame for ultimate flotation and traction. This rim is high in durability and low in maintenance thanks to a tubeless ready rim bed for easier tubeless tire setup with a no-stretch rim strip plus tubeless rim tape. The ramped cross-section approaching the Bead Seat stabilizes the tire bead and casing for easy setup.

Disc Brake use only

Not compatible with any rim brake systems

Tubeless Tape Kit (Sold Separately)

Moonlander OE support part sold without aftermarket packaging

Brake Compatibility	Disc Only
Rim Width (External)	100
Manufacturer Spec ERD (mm)	500
Material	Alloy
Valve	Presta
Valve Length	Med 41-55mm
Color	Black
Wheel Size	24"
Width	100
Defined Color	Black
ISO Diameter	507 / 24" BMX
Eyelets	None
Rim Joint	Welded
Hub Drilling	32
Rim Depth (mm)	14
Rim Material	Alloy
Tire Type	Tubeless Ready Clincher
Rim Center Offset (mm)	18.5
